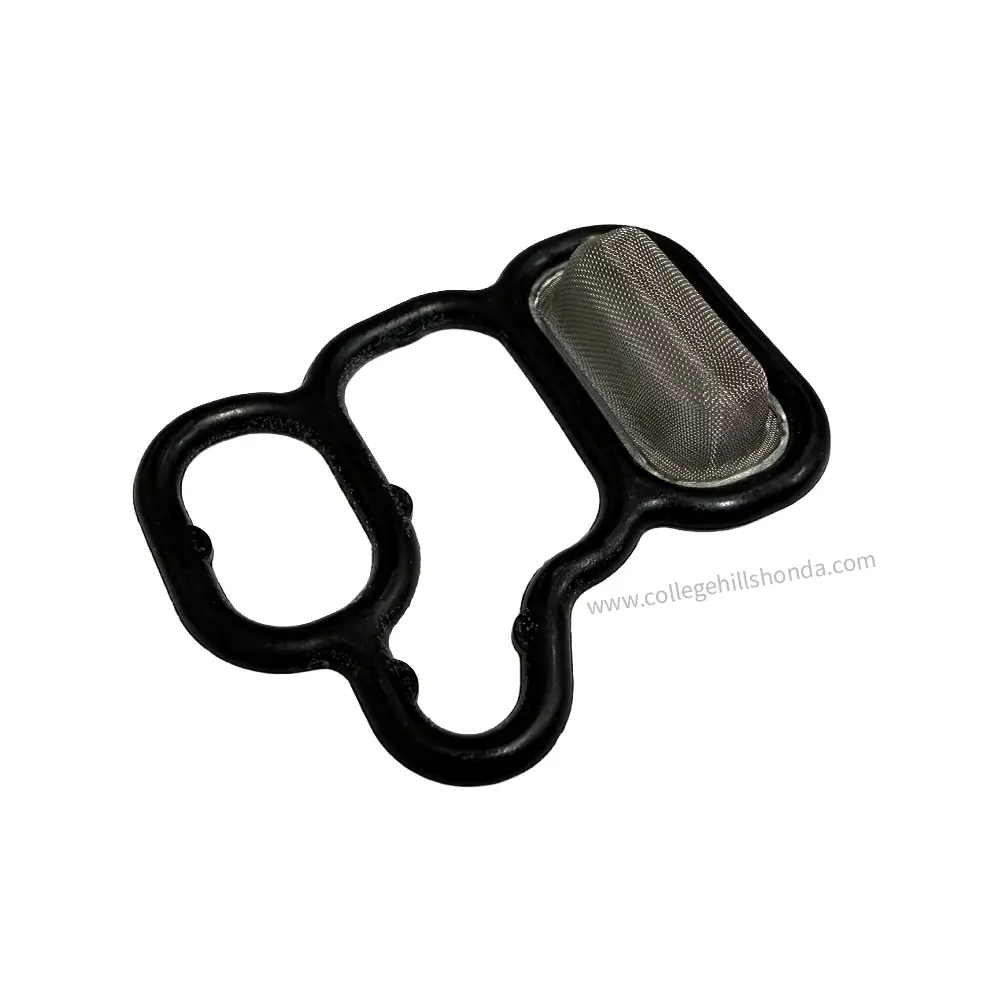

Spool Valve Filter

by American Honda Motor Company Part #: 15815-RAA-A02

Description

Also known as the VTEC solenoid gasket filter, it seals the connection between the variable valve timing spool valve and the cylinder head. Featuring a built-in fine wire mesh screen, it filters engine oil entering the VTEC system to prevent debris from clogging the hydraulic spool valve mechanism. Replacing this gasket is a standard fix for resolving oil leaks around the spool valve housing and restoring proper variable valve timing operation affected by clogged filter screens.

Description

Vehicle Applications

Year	Make	Model	Body & Trim	Engine & Transmission
2007	Honda	Accord	2 Door EX, 2 Door EX-L, 2 Door EX-SUL, 2 Door LX, 2 Door LX-SUL, 4 Door EX, 4 Door EX-L, 4 Door LX, 4 Door SE, 4 Door VP	KA 5AT, KA 5MT, KL 5AT
2006	Honda	Accord	2 Door EX, 2 Door EX-L, 2 Door LX, 4 Door EX, 4 Door EX-L, 4 Door LX, 4 Door SE, 4 Door VP	KA 5AT, KA 5MT, KL 5AT
2005	Honda	Accord	2 Door EX, 2 Door EX-L, 2 Door LX, 2 Door SE, 4 Door DX, 4 Door EX, 4 Door EX-L, 4 Door LX	KA 5AT, KA 5MT, KL 5AT, KL 5MT
2004	Honda	Accord	2 Door EX, 2 Door EX-L, 2 Door LX, 4 Door DX, 4 Door EX, 4 Door EX-L, 4 Door LX	KA 5AT, KA 5MT, KL 5AT
2003	Honda	Accord	2 Door EX, 2 Door EX-L, 2 Door LX, 4 Door DX, 4 Door EX, 4 Door EX-L, 4 Door LX	KA 5AT, KA 5MT, KL 5AT
2011	Honda	Civic	2 Door SI, 4 Door SI	KA 6MT
2010	Honda	Civic	2 Door SI, 4 Door SI	KA 6MT
2009	Honda	Civic	2 Door SI, 4 Door SI	KA 6MT
2008	Honda	Civic	2 Door SI, 4 Door SI	KA 6MT
2007	Honda	Civic	2 Door SI, 4 Door SI	KA 6MT
2006	Honda	Civic	2 Door SI	KA 6MT
2005	Honda	Civic	3 Door SI	KA 5MT
2004	Honda	Civic	3 Door SI	KA 5MT
2003	Honda	Civic	3 Door SI	KA 5MT
2002	Honda	Civic	3 Door SI	KA 5MT
2009	Honda	CR-V	5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 5AT
2008	Honda	CR-V	5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 5AT
2007	Honda	CR-V	5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 5AT
2006	Honda	CR-V	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door SE	KA 5AT, KA 5MT
2005	Honda	CR-V	5 Door EX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door SE	KA 5AT, KA 5MT
2004	Honda	CR-V	5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 4AT, KA 5MT
2003	Honda	CR-V	5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 4AT, KA 5MT
2002	Honda	CR-V	5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 4AT, KA 5MT
2011	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 5AT
2010	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door SC (2WD)	KA 5AT, KA 5MT
2009	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door SC	KA 5AT, KA 5MT
2008	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door SC	KA 5AT, KA 5MT
2007	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door SC	KA 5AT, KA 5MT
2006	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-P (2WD), 5 Door EX-P (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 4AT, KA 5MT
2005	Honda	Element	5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 4AT, KA 5MT
2004	Honda	Element	5 Door DX (2WD), 5 Door DX (4WD), 5 Door EX (2WD), 5 Door EX (4WD), 5 Door LX (2WD), 5 Door LX (4WD)	KA 4AT, KA 5MT
2003	Honda	Element	5 Door DX (2WD), 5 Door DX (4WD), 5 Door EX (2WD), 5 Door EX (4WD)	KA 4AT, KA 5MT
2008	Honda	Fit	5 Door Base, 5 Door Sport	KA 5AT, KA 5MT
2007	Honda	Fit	5 Door Base, 5 Door Sport	KA 5AT, KA 5MT

WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov. State of California Proposition 65.

Have another question? 1-855-299-7244

Retail Price:	~~$10.20~~
Our Price:	$7.34
